Catalogue > Accessories

System Accessories and Spare Parts

Mounting, connection, and installation components designed to complete and extend Triton lighting systems.

Linear Mounting Brackets

Linear Mounting Kits — Universal for Lito40 & SMP60

Universal mounting and power-feed accessories compatible with both Lito40 and SMP60 linear luminaires. Canopy kits (3-pin and 5-pin) provide power-feed and structural anchoring; suspended kits enable adjustable pendant installation. All…

Connectors

Lito40 Joints & Connectors

Geometry connectors for the Lito40 linear luminaire — enables L-shape (90° corner), T-shape (3-way), and X-shape (4-way cross) configurations without custom fabrication. Each joint includes electrical contacts for seamless power and…

SMP60 Joints & Connectors

Geometry connectors for the SMP60 linear luminaire family — enables L, T, and X-shape configurations. Same plug-in convenience as Lito40 joints, with mechanical and electrical profile matched to the wider SMP60 body. Tool-free…

Spare Parts

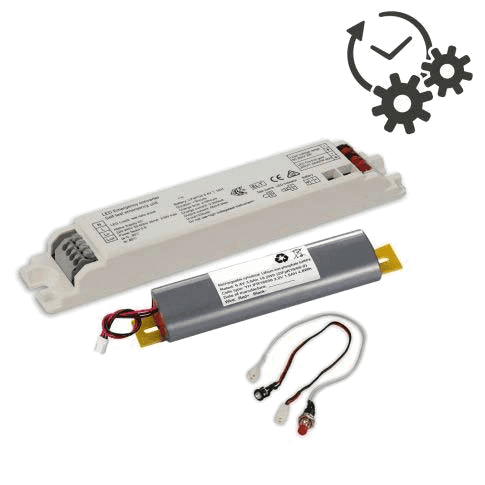

Emergency Conversion Pack — LiFePO4 Battery

Self-contained LiFePO4 battery emergency pack — converts compatible LED luminaires to emergency mode during mains failure. 6.4V 3200mAh LiFePO4 cell powers the connected luminaire for 3 hours at reduced output. Universal 220–240V input…

Emergency Basic — LED Emergency Lighting Device

Vossloh-Schwabe electronic LED emergency lighting device with iron phosphate (LiFePO4) batteries. 1h or 3h nominal emergency operation. Compact M66 casing (150×30.2×22.1mm) for integration into LED luminaires. Up to 3W output, 250 lm…

Emergency Smart DALI2 — LED Emergency Lighting Device

Vossloh-Schwabe DALI2 emergency lighting device with self-diagnosis (EN 62034) and iron phosphate batteries. 1h or 3h emergency operation. K67 casing (177×30×21.5mm). DALI2-controllable, ideal for centralised emergency lighting systems.

LED Modules

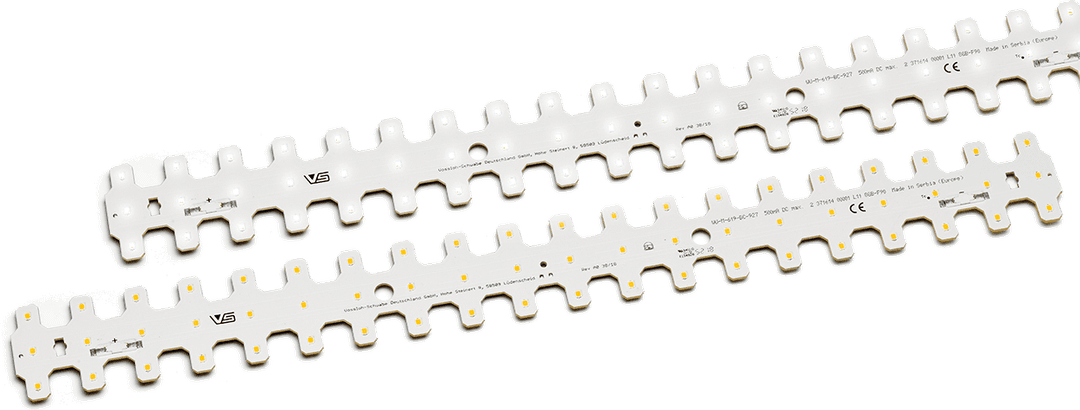

LED Line SMD Comfort-B 3R Gen. 3

Vossloh-Schwabe LED built-in module (493x49x6.4mm) for integration into luminaires. Up to 209 lm/W efficacy with 6 driving current options (150-600mA), 6 CCT (2700K-6500K), and CRI 80/90 versions. T5/T8 retrofit, office & industrial…

LED Line SMD Kit 3R Gen. 4

Vossloh-Schwabe LED built-in modules in 2 lengths (280mm / 566mm) for office, retail, and T5/T8 retrofit. Up to 204 lm/W efficacy with 5 driving currents (150-700mA) and 6 CCT options (2700K-6500K).

LED Line SMD W2 Comfort Gen. 2

Vossloh-Schwabe compact LED built-in modules in 5 lengths (70/140/280/500/560mm) for office, retail, furniture, and T5/T8 retrofit. Up to 195 lm/W efficacy with 5 driving currents (250-700mA), 700/1400 lm packages.

LED Optics

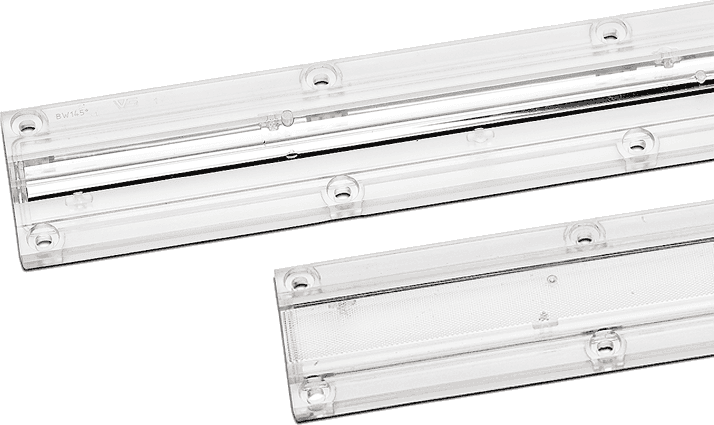

Linear Optics 1R for SMD W2 – IP65

Vossloh-Schwabe IP65 universal tunnel lens for SMD W2 LED modules. Microprismatic PC optics with up to 91% efficiency. Suitable for industrial, storage, and car park lighting. Available in 3 beam angles.

Linear Optics 3R for SMD W5.5

Vossloh-Schwabe glare-free linear optics for SMD W5.5 LED modules. 33 single PMMA lenses on 280mm strip. UGR and CLC variants. Up to 95% efficiency. For office, shop, aisle, shelf, and industrial lighting (IP20/IP54).

Linear Optics 3R for SMD Comfort-B

Vossloh-Schwabe glare-free linear optics for SMD Comfort-B LED modules. 60 or 90 PC single lenses on 500mm strip. UGR and CLC variants. Up to 95% efficiency. HO version with 90 lenses for high-output industrial applications.
